Example (from Program LA_STEVR_EXAMPLE)

The results below are computed with $\epsilon = 1.19209 \times 10^{-7}$.
The matrix $A$ is the same as in Example 1 for LA_STEV.

The call:
CALL LA_STEVR( D, E, W, Z,
-5.0_wp, 5.0_wp, M=M )7.5

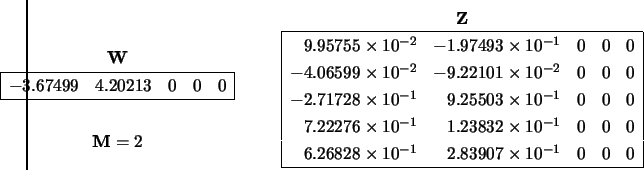

W, Z and M on exit:

\begin{displaymath}\hspace{-1.00 cm} \begin{array}{c} \\
\begin{array}{cc} {\b...
... \times 10^{-1} & 0 & 0 & 0 \\
\hline \end{array} \end{array} \end{displaymath}

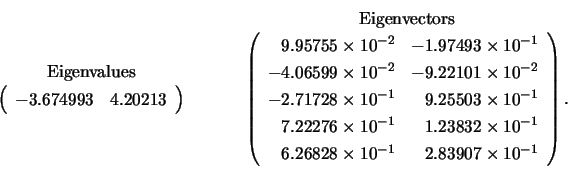

The two eigenvalues of $A$ in the range $[-5, 5]$ and the corresponding eigenvectors are:

\begin{displaymath}
\begin{array}{c} \mbox{Eigenvalues} \\
\left( \begin{array...
...{-1} & 2.83907 \times 10^{-1}
\end{array} \right). \end{array}\end{displaymath}
