3 The Communicator Abstraction

  Communicators provide support for the design of safe, modular software libraries. Here ``safe'' means that messages intended for receipt by a particular receive call in an application will not be incorrectly intercepted by a different receive call. Thus, communicators are a powerful mechanism for avoiding unintentional non-determinism in message passing. This may be a particular problem when using third-party software libraries that perform message passing. The point here is that the application developer has no way of knowing if the tag, group, and rank completely disambiguate the message traffic of different libraries and the rest of the application. Communicator arguments are passed to all MPI message passing routines, and a message can be communicated only if the communicator arguments passed to the send and receive routines match. Thus, in effect communicators provide an additional criterion for message selection, and hence permit the construction of independent tag spaces.

If communicators are not used to disambiguate message traffic there are two ways in which a call to a library routine can lead to unintended behavior. In the first case the processes enter a library routine synchronously when a send has been initiated for which the matching receive is not posted until after the library call. In this case the message may be incorrectly received in the library routine. The second possibility arises when different processes enter a library routine asynchronously, as shown in the example in Figure 1, resulting in nondeterministic behavior. If the program behaves correctly processes 0 and 1 each receive a message from process 2, using a wildcarded selection criterion to indicate that they are prepared to receive a message from any process. The three processes then pass data around in a ring within the library routine.

If separate communicators are not used for the communication inside and outside of the library routine this program may intermittently fail. Suppose we delay the sending of the second message sent by process 2, for example, by inserting some computation, as shown in Figure 2. In this case the wildcarded receive in process 0 is satisfied by a message sent from process 1, rather than from process 2, and deadlock results. By supplying a different communicator to the library routine we can ensure that the program is executed correctly, regardless of when the processes enter the library routine.

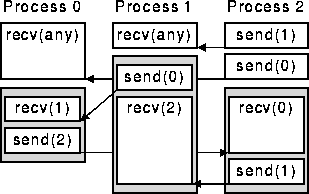

Figure 1: Use of communicators. Time increases down the page. Numbers in parentheses indicate the process to which data are being sent or received. The gray shaded area represents the library routine call. In this case the program behaves as intended. Note that the second message sent by process 2 is received by process 0, and that the message sent by process 0 is received by process 2.



Figure 2: Unintended behavior of program. In this case the message from process 2to process 0 is never received, and deadlock results.

Communicators are opaque objects, which means they can only be manipulated using MPI routines. The key point about communicators is that when a communicator is created by an MPI routine it is guaranteed to be unique. Thus it is possible to create a communicator and pass it to a software library for use in all that library's message passing. Provided that communicator is not used for any message passing outside of the library, the library's messages and those of the rest of the application cannot be confused.

Communicators have a number of attributes. The group attribute identifies the process group relative to which process ranks are interpreted, and/or which identifies the process group involved in a collective communication operation. Communicators also have a topology attribute which gives the topology of the process group. Topologies are discussed in Section 6. In addition, users may associate arbitrary attributes with communicators through a mechanism known as caching.
