What is BFD?

How many times have you seen a message like the following?


ERROR

Requested document (URL http://j.random.host/file.html) could not be accessed.

The information server either is not accessible or is refusing to serve the document to you.


The motivation behind BFD is to make it so that you will never (well, hardly ever) see that message!

BFD stands for Bulk File Distribution. It is a system for transparently mirroring files between cooperating file servers, and keeping track of where the mirrored copies are. The locations of the mirrored copies are stored in a distributed database which is accessible from a BFD-aware WorldWideWeb (W3) browser.

When using such a browser, when you click on a phrase or icon to a particular web page, the client will consult the BFD location database to see if knows about any mirrored copies of that page. If so, the client will access the page from one of the mirrored servers. (If the first mirrored server is unavailable, it will try the second one, and so on, until it finds one that works.) If all else fails, the browser will attempt to fetch the page from the primary server.

But what if the mirrored copy is out-of-date?

BFD is designed to make that unlikely. If the software used to mirror one file server to another is also BFD-aware, that software will update the BFD location database every time it copies a new file. Also, the browser can find out the date at which the mirrored file was copied from the primary server, and display that to the user. Finally, for files that are published using BFD, BFD can provide reasonable assurances (to within seconds) that the file is current, and also allow the client to check the integrity of the file (so you will know that the file isn't corrupted).

Won't BFD slow things down?

In some cases, accessing a file via BFD and a mirror server may be slower than it would have been to access the file from the location in its URL. However, the really annoying cases are where you have to wait several seconds only to find out that a file isn't available, shouldn't happen nearly as often.

What's more, with BFD it is possible to have a popular web page mirrored on dozens of servers all around the world. The browser can then decide (using heuristics) which mirror server is the closest to you, or which one is most likely to be available, and try that one first. If the browser can fetch a file from a nearby site, it's almost certainly faster than fetching it from a file halfway across the planet.

Finally, with BFD, a popular web site can scale dramatically, by mirroring its files on several machines which share the load.

How does BFD work?

There are several components to BFD, including: Each of these will be described in turn. In our implementation, the URN server and LIFN server are pulled together into the Resource Catalog (RC) Server.

Name (URN) Servers

A name server manages a database of meta-information about files that are managed by BFD. Each file managed by BFD is assigned a Uniform Resource Name (URN) which can be used to refer to the file. Given a URN, a Web browser can query a name server for that URN and find out some information about that file.

Among the information stored for each file is a Location-Independent File Name (LIFN). A LIFN is a name for a specific sequence of bytes that corresponds to the current version of the file. Other pieces of information about the file which might be available from the URN server would include the file's ``catalog information'' (title, author, description, etc.,) as well as ``instance information'' such as content-type, size, MD5 fingerprint, and a cryptographically signed certificate of authenticity.

Name servers can also collect statistics about which URNs are requested most often, and when, to aid the collection manager in knowing which files to acquire, which ones to keep on-hand, and which ones to reap.

Location (URL) Servers

A location server manages a database of LIFN-to-location (URL) bindings. Every time a file server makes a new file available via BFD, it informs a location server. If a Web client subsequently asks for locations for a particular LIFN, the location server will then respond with a list of URLs where that file can be found.

NOTE: The distinction between a URN and a LIFN is subtle but important. A URN is a long-lasting name that can be used by humans to refer to some network-accesible resource: be it a Web page, a telnet session, or a MUD. However, the exact contents of the resource named by the URN can change. Accessing a URN for ``today's newspaper'' would give you different results today than yesterday.

The use of LIFNs is more restricted. First of all, a LIFN can only refer to a file; it cannot be used to name other kinds of network accessible resources. Second, once a LIFN has been assigned to a specific sequence of bytes, that LIFN cannot be used to name any other sequence of bytes. Finally, LIFNs are not really intended to be used by humans (though this might happen occasionally); they were created so that the various components of BFD could all have a common, unambiguous name for every file managed by BFD.

Replication Daemons

A replication daemon performs the task of acquiring new files from remote servers, deleting files that are no longer wanted, and informing the location servers of the changes. This function is similar to that provided by several existing ``mirror'' programs, but in addition to copying files from one server to another, the replication daemon also propagtes each file's LIFN and any other information which is needed by the file server.

The BFD replication daemon is designed to perform its task very efficiently. Planned features include on-the-wire compression, checkpoint/restart, multiple file multiplexing (to allow for the gradual transfer of very large files without pre-empting small ones), integrity checking, and a protocol which works well over high bandwidth-delay links.

Collection Managers

A collection manager decides which files to acquire, which ones to keep, and which ones to throw away. It makes such decisions based on access statistics (as obtained from the file server or a name server), and site-specified criteria. The results of such decisions are then fed to one or more replication daemons. If several file servers are under control of a single administration, a single collection manager may make decisions for several of its file servers, and transmit the instructions to each file server via the network.

File Servers

File servers in BFD are essentially ordinary HTTP, Gopher, or FTP servers which provide file access to BFD-managed files for Web browsers.

Clients

BFD clients are slightly modified Web browsers which, in addition to having the capability to retrieve a file given its URL, also have the capability to retrieve files (by consulting name and/or location servers) by URN or LIFN. Since URNs and LIFNs cannot be expected to be widely used for some time, a transition strategy has been developed that provides some of the benefits of BFD for files accessed by a URL.

Other tools

Other tools will be necessary to implement BFD fully. In particular, there will be a need for tools to help publishers manage their collections, tools to help authors and editors maintain the catalog information for their works, and a mechanism to export various kinds of meta-information to resource discovery systems such as Harvest.

Use of URNs and LIFNs for publishing and accessing files is illustrated in Figures 1 and 2.

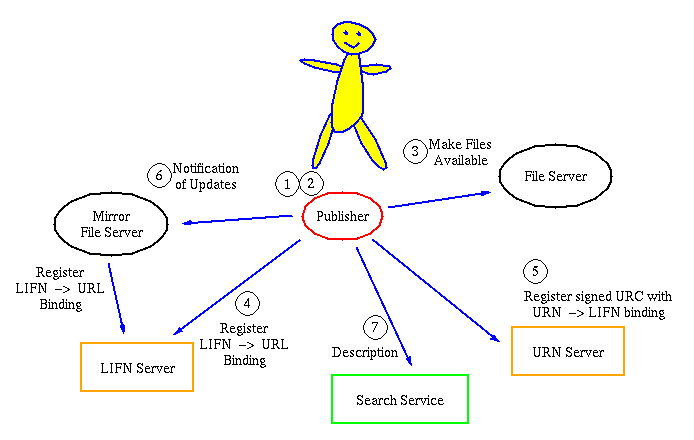

Figure 1:


Figure 2:
