Quick Reference Guide to the PBLAS



An html version of this Quick Reference Guide , along with the leading comments from each of the routines, is available via the ScaLAPACK homepage.

http://www.netlib.org/scalapack/index.html

At the lowest level, the efficiency of the PBLAS is determined by the local performance of the BLAS and the BLACS. In addition, depending on the shape of its input and output distributed matrices, the PBLAS select the best algorithm in terms of data transfer across the process grid. Transparent to the user, this relatively simple selection process ensures high efficiency independent of the actual computation performed.

Level 1 PBLAS

         dim scalar     vector                  vector
P_SWAP ( N,             X, IX, JX, DESCX, INCX, Y, IY, JY, DESCY, INCY )
P_SCAL ( N, ALPHA,      X, IX, JX, DESCX, INCX )
P_COPY ( N,             X, IX, JX, DESCX, INCX, Y, IY, JY, DESCY, INCY )
P_AXPY ( N, ALPHA,      X, IX, JX, DESCX, INCX, Y, IY, JY, DESCY, INCY )
P_DOT  ( N, DOT,        X, IX, JX, DESCX, INCX, Y, IY, JY, DESCY, INCY )
P_DOTU ( N, DOTU,       X, IX, JX, DESCX, INCX, Y, IY, JY, DESCY, INCY )
P_DOTC ( N, DOTC,       X, IX, JX, DESCX, INCX, Y, IY, JY, DESCY, INCY )
P_NRM2 ( N, NORM2,      X, IX, JX, DESCX, INCX )
P_ASUM ( N, ASUM,       X, IX, JX, DESCX, INCX )
P_AMAX ( N, AMAX, INDX, X, IX, JX, DESCX, INCX )

Level 2 PBLAS

         options            dim   scalar matrix            vector                 scalar vector
P_GEMV (       TRANS,       M, N, ALPHA, A, IA, JA, DESCA, X, IX, JX, DESCX, INCX, BETA, Y, IY, JY, DESCY, INCY )
P_HEMV ( UPLO,                 N, ALPHA, A, IA, JA, DESCA, X, IX, JX, DESCX, INCX, BETA, Y, IY, JY, DESCY, INCY )
P_SYMV ( UPLO,                 N, ALPHA, A, IA, JA, DESCA, X, IX, JX, DESCX, INCX, BETA, Y, IY, JY, DESCY, INCY )
P_TRMV ( UPLO, TRANS, DIAG,    N,        A, IA, JA, DESCA, X, IX, JX, DESCX, INCX )
P_TRSV ( UPLO, TRANS, DIAG,    N,        A, IA, JA, DESCA, X, IX, JX, DESCX, INCX )

         options            dim   scalar vector                  vector                  matrix
P_GER  (                    M, N, ALPHA, X, IX, JX, DESCX, INCX, Y, IY, JY, DESCY, INCY, A, IA, JA, DESCA )
P_GERU (                    M, N, ALPHA, X, IX, JX, DESCX, INCX, Y, IY, JY, DESCY, INCY, A, IA, JA, DESCA )
P_GERC (                    M, N, ALPHA, X, IX, JX, DESCX, INCX, Y, IY, JY, DESCY, INCY, A, IA, JA, DESCA )
P_HER  ( UPLO,                 N, ALPHA, X, IX, JX, DESCX, INCX,                         A, IA, JA, DESCA )
P_HER2 ( UPLO,                 N, ALPHA, X, IX, JX, DESCX, INCX, Y, IY, JY, DESCY, INCY, A, IA, JA, DESCA )
P_SYR  ( UPLO,                 N, ALPHA, X, IX, JX, DESCX, INCX,                         A, IA, JA, DESCA )
P_SYR2 ( UPLO,                 N, ALPHA, X, IX, JX, DESCX, INCX, Y, IY, JY, DESCY, INCY, A, IA, JA, DESCA )

Level 3 PBLAS

         options                           dim      scalar matrix            matrix            scalar matrix
P_GEMM (             TRANSA, TRANSB,       M, N, K, ALPHA, A, IA, JA, DESCA, B, IB, JB, DESCB, BETA, C, IC, JC, DESCC )
P_SYMM ( SIDE, UPLO,                       M, N,    ALPHA, A, IA, JA, DESCA, B, IB, JB, DESCB, BETA, C, IC, JC, DESCC )
P_HEMM ( SIDE, UPLO,                       M, N,    ALPHA, A, IA, JA, DESCA, B, IB, JB, DESCB, BETA, C, IC, JC, DESCC )
P_SYRK (       UPLO, TRANS,                   N, K, ALPHA, A, IA, JA, DESCA,                   BETA, C, IC, JC, DESCC )
P_HERK (       UPLO, TRANS,                   N, K, ALPHA, A, IA, JA, DESCA,                   BETA, C, IC, JC, DESCC )
P_SYR2K(       UPLO, TRANS,                   N, K, ALPHA, A, IA, JA, DESCA, B, IB, JB, DESCB, BETA, C, IC, JC, DESCC )
P_HER2K(       UPLO, TRANS,                   N, K, ALPHA, A, IA, JA, DESCA, B, IB, JB, DESCB, BETA, C, IC, JC, DESCC )
P_TRAN (                                   M, N,    ALPHA, A, IA, JA, DESCA,                   BETA, C, IC, JC, DESCC )
P_TRANU(                                   M, N,    ALPHA, A, IA, JA, DESCA,                   BETA, C, IC, JC, DESCC )
P_TRANC(                                   M, N,    ALPHA, A, IA, JA, DESCA,                   BETA, C, IC, JC, DESCC )
P_TRMM ( SIDE, UPLO, TRANSA,         DIAG, M, N,    ALPHA, A, IA, JA, DESCA, B, IB, JB, DESCB )
P_TRSM ( SIDE, UPLO, TRANSA,         DIAG, M, N,    ALPHA, A, IA, JA, DESCA, B, IB, JB, DESCB )

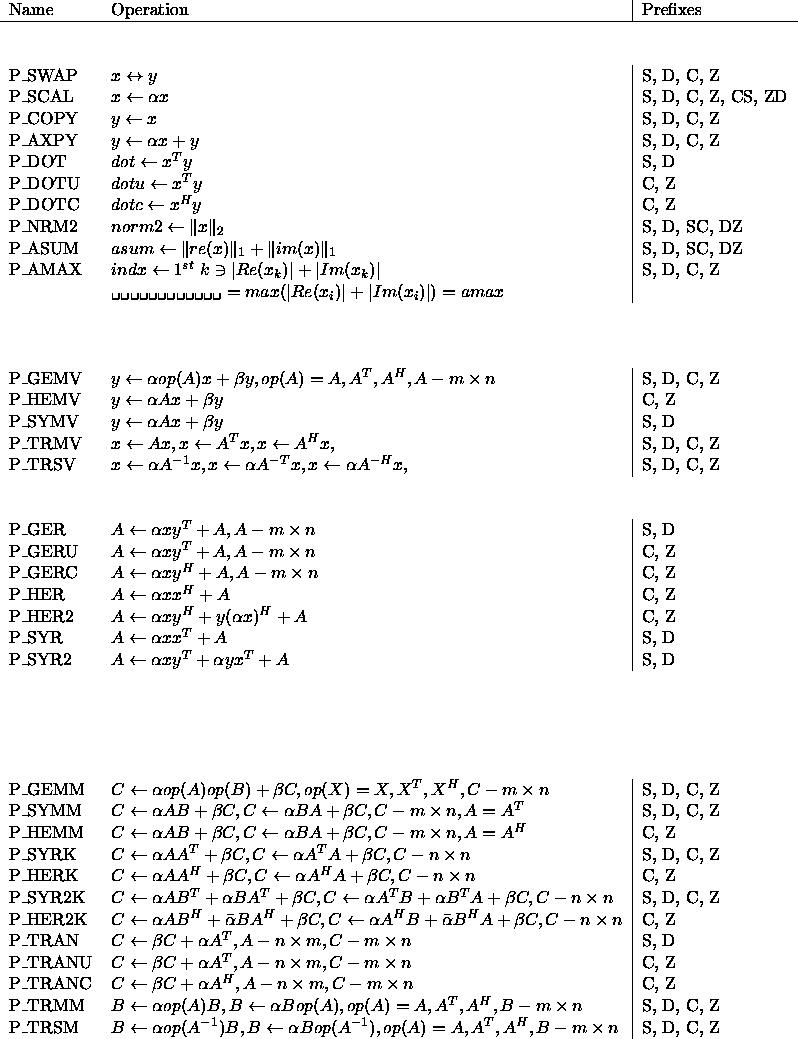

tabular6927

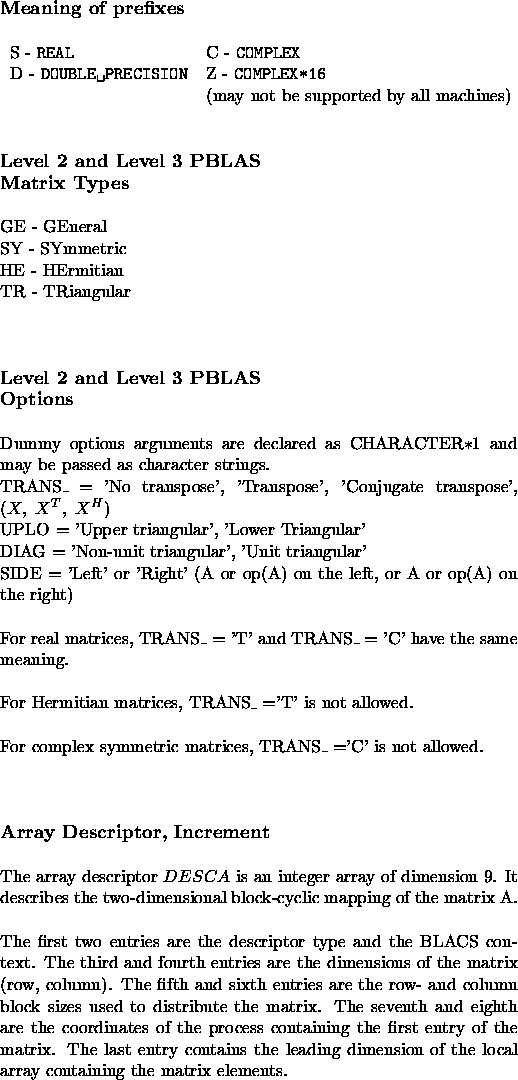

tabular6979
