ScaLAPACK Performance



In this section, we present performance data for Version 1.4 of ScaLAPACK on four distributed memory computers and two networks of workstations. The four distributed memory computers are the Cray T3E computer, the IBM Scalable POWERparallel 2 computer, the Intel XP/S MP Paragon computer, and the Intel ASCI Option Red Supercomputer. One of the networks of workstations consists of Sun Ultra Enterprise 2 (Model 2170s) connected via switched ATM. The other network of workstations, the Berkeley NOW [34] , consists of 100+ Sun UltraSPARC-1 workstations and 40+ Myricom crossbar switches and LANai 4.1 network interface cards. ScaLAPACK on the NOW uses MPI BLACS, where the MPI is a port of the freely-available MPICH reference code. MPI uses Active Messages  as its underlying communications layer. Active Messages [98] provide ultra-lightweight remote-procedure calls for processes on the NOW. The system currently uses AM-II , a generalized active message layer that supports more than SPMD parallel programs, e.g., client-server programs and distributed filesystems. It retains the simple request/response paradigm common to all previous active message implementations as well as its high-performance. These six computers are a collection of processing nodes interconnected via a network. Each node has local memory and one or more processors. Tables 5.25.3, and 5.4 describe the characteristics of these six computers.

  table3764

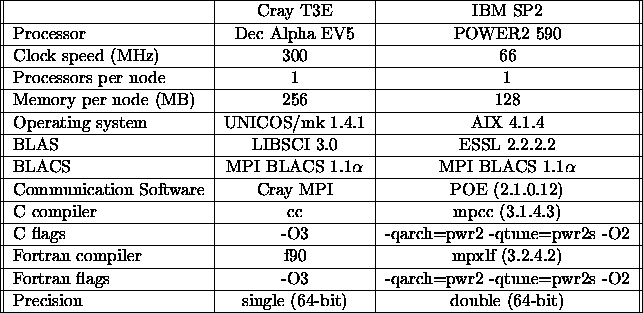

Table 5.2: Characteristics of the Cray T3E and IBM SP2 computers timed

  table3773

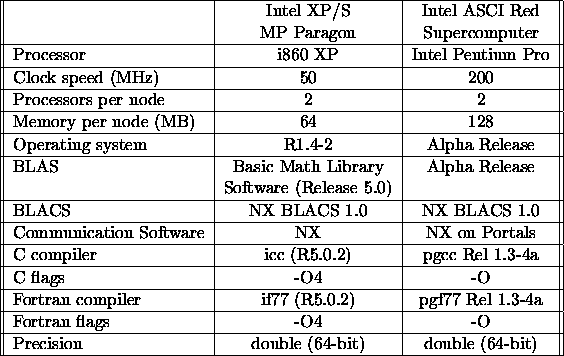

Table 5.3: Characteristics of the Intel computers timed

  table3782

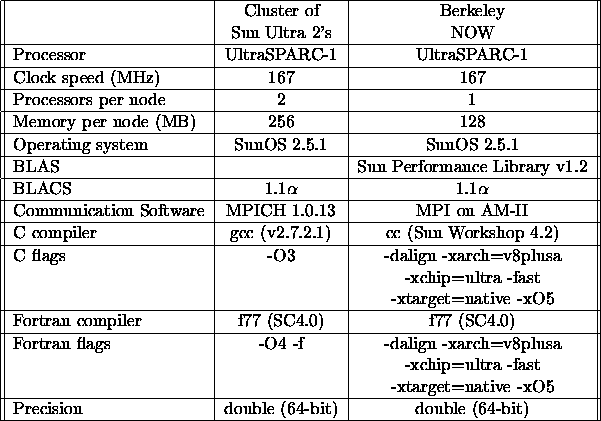

Table 5.4: Characteristics of the networks of workstations timed

As noted in Tables 5.25.3, and 5.4, a machine-specific optimized BLAS implementation was used for all the performance numbers reported in this chapter. For the IBM Scalable POWERparallel 2 (SP2) computer, the IBM Engineering and Scientific Subroutine Library (ESSL) was used [88]. On the Intel XP/S MP Paragon computer, the Intel Basic Math Library Software (Release 5.0) [89] was used. The Intel ASCI Option Red Supercomputer was tested using a pre-alpha version of the Cougar operating system and using an unoptimized functional version of the dual processor Basic Math Library from Kuck and Associates, Inc. The communication performance and library performance was still being enhanced. On the Sun Ultra Enterprise 2 workstation, the Dakota Scientific Software Library (DSSL)gif was used. The DSSL BLAS implementation used only one processor per node. On the Berkeley NOW, the Sun Performance Library, version 1.2, was used. It should also be noted that for the IBM Scalable POWERparallel 2 (SP2) the communication layer used was the IBM Parallel Operating Environment (POE), which is a combination of MPI and MPL libraries.

Several data distributions were tried for N=2000. The fastest data distribution for N=2000 was used for all problem sizes, although this data distribution may not be optimal for all problem sizes. Whenever applicable, only the options UPLO=`U' and TRANS=`N' were timed. The test matrices were generated with randomly distributed entries. All runtimes are reported in seconds. Block size is denoted by NB.

This section first reports performance data for a relevant selection of BLAS and BLACS routines. Then, timing results obtained for some PBLAS routines are presented. Finally, performance numbers for selected ScaLAPACK driver routines are shown.
